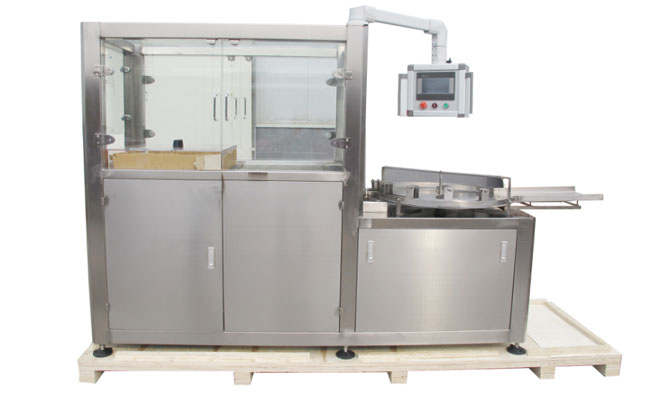

Introduction of ultrasonic vial washing machine:

At present, various pharmaceutical factories on the market use powder vials, freeze-dried vials, oral liquid vials or other vials of vials and oral liquids. In the production process of the bottle, a lot of white powdery substances are produced inside the bottle after high temperature, which is difficult to clean. The ultrasonic bottle washing machine produced by our factory is the equipment for cleaning vials and oral liquid bottles. It has ultrasonic cleaning and high-pressure water spray cleaning. Ultrasonic has high-strength cleaning, peeling and sterilization functions for white substances and chips. The ultrasonic bottle washing machine produced by our company fully conforms to the national GMP requirements. The bottles after ultrasonic cleaning and three-water three-gas spraying on the inner and outer walls of the bottle can fully meet the cleanliness requirements and can be used with confidence.

Technical parameters of ultrasonic vial washing machine:

1. Production capacity: 60-1200 pieces/min (adjustable)

2. Scope of application: vial 2-250ml

3. Damage rate: ≤0.1‰

4. Ultrasonic power: 1-4KW

5. Working voltage: 380/220V 50Hz (three-phase four-wire system)

Features of ultrasonic vial washing machine:

1. The ultrasonic bottle washing machine is in accordance with the requirements of the new version of the "GMP" drug production management standard, and the technology of the ultrasonic bottle washing machine is continuously improved, so that the improved ultrasonic bottle washing machine structure is more in line with the requirements of the drug production management standard, and the quality is more reliable and performance. more stable.

2. The ultrasonic wave adopts power adjustment: the ultrasonic wave is equipped with 1-3KW, and the power of the ultrasonic wave can be adjusted according to different output and bottle washing speed.

3. In the process of fine washing, the isolation and separation of purified water, injection water and clean air are adopted to prevent the mixing of purified water, injection water and clean air.

4. Combined bearing device, the main features: stable transmission, no maintenance, reduce installation space. The main component is only one set of combined bearing device, and then the motor can be installed.
